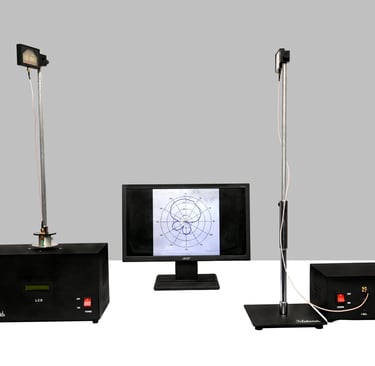

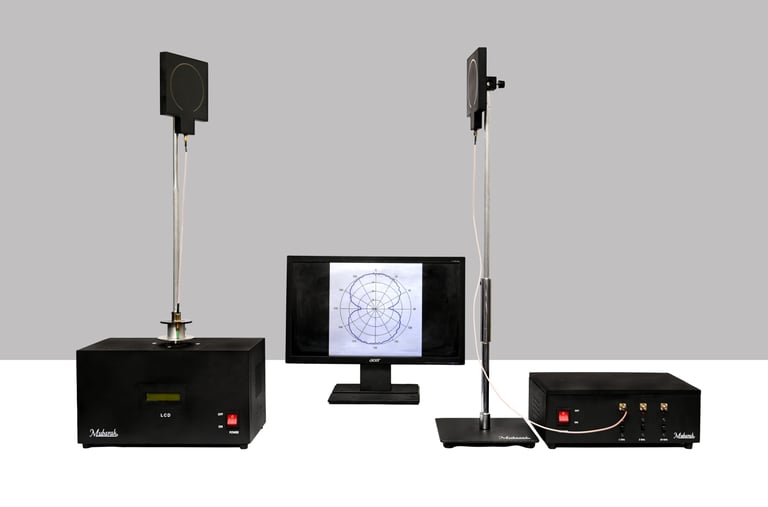

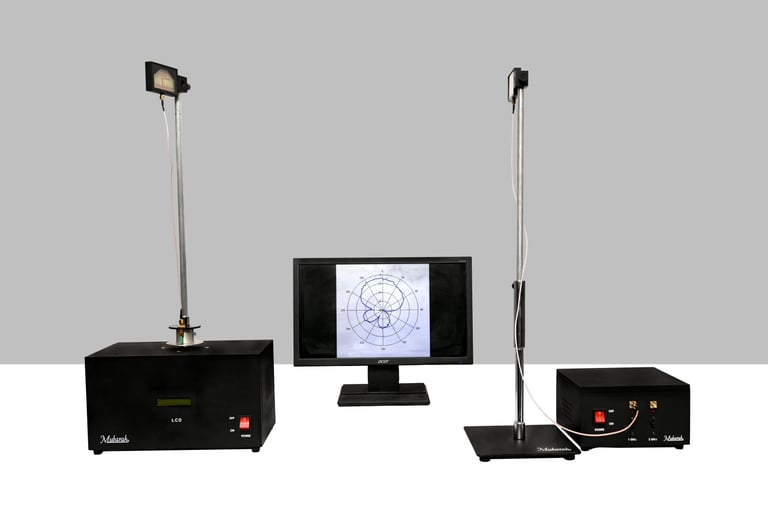

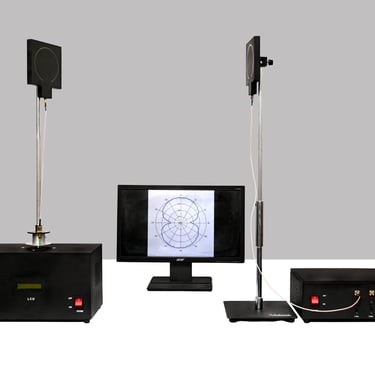

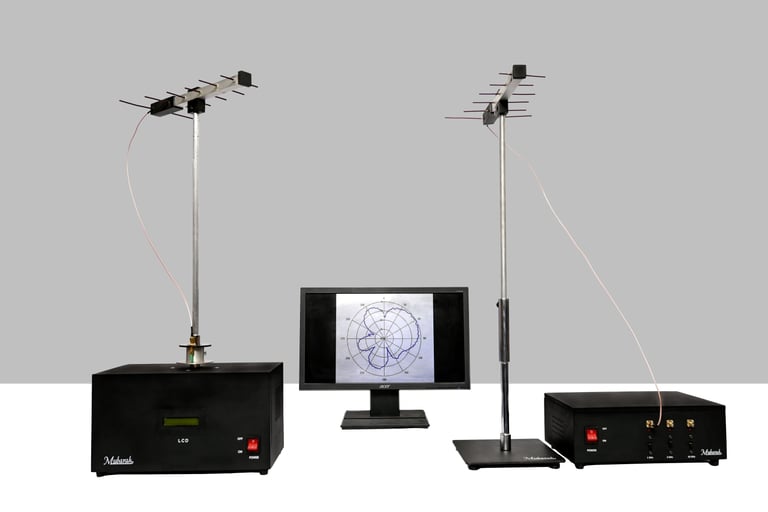

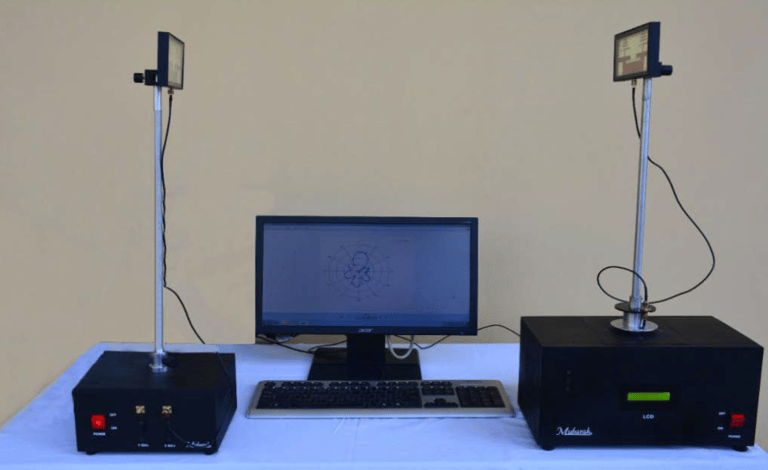

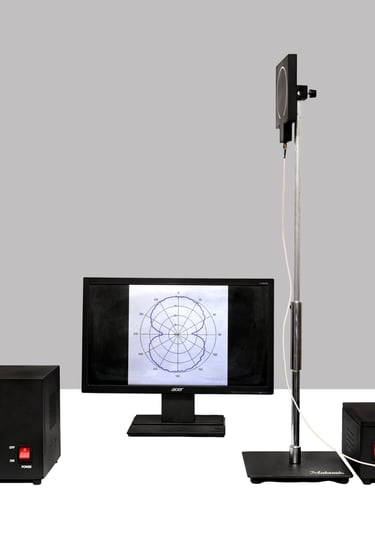

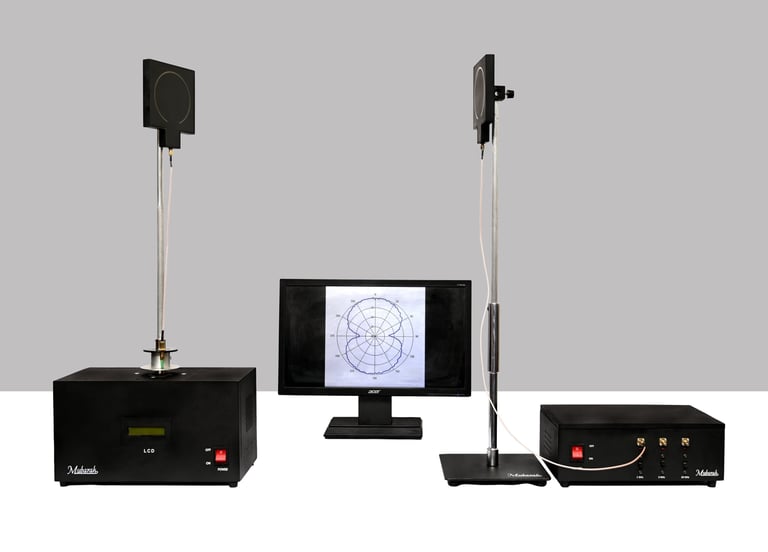

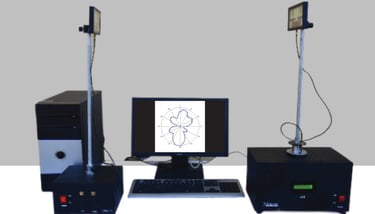

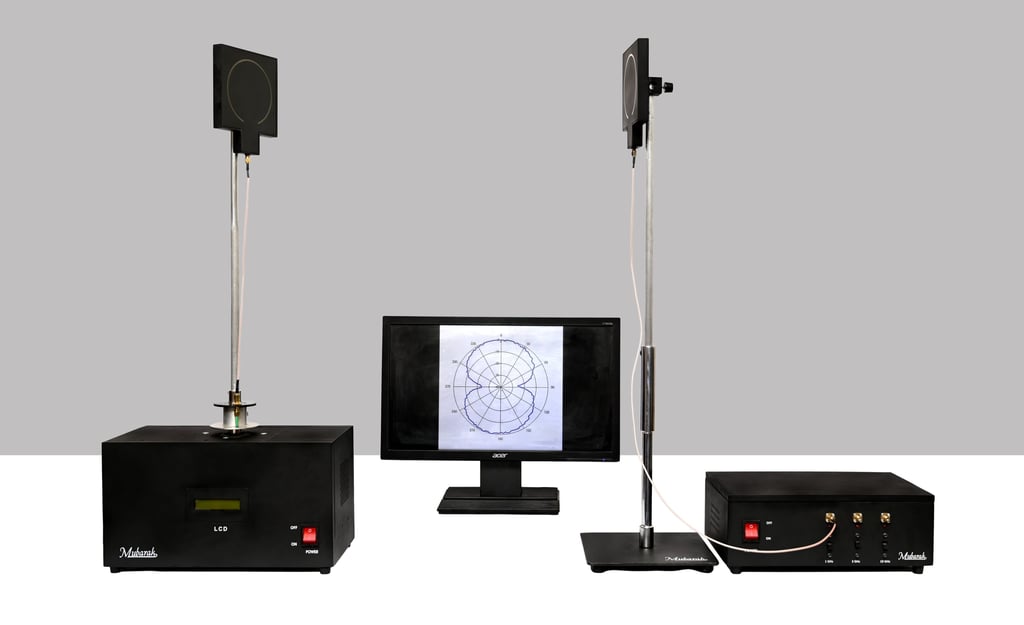

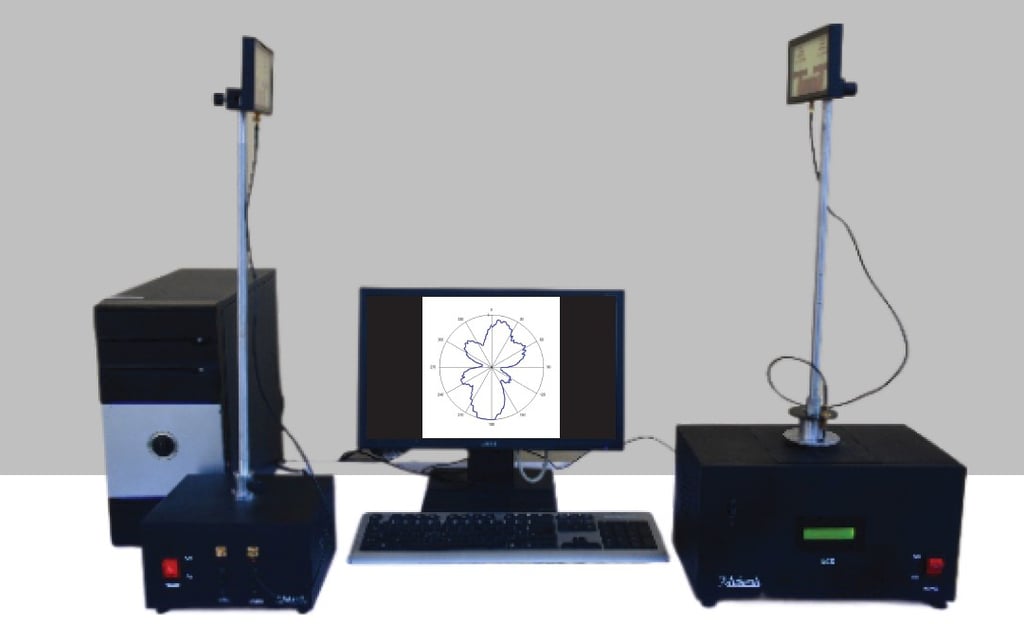

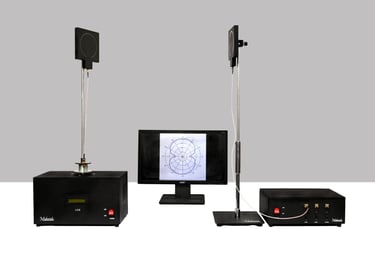

Microwave Antenna Training and Measuring System

Mubarak M-5000 Series Antenn

Features of Antenna Training and Measuring System:

• A PC-based cost-effective Antenna Training and Measuring System.

• Antenna Lab Equipment.

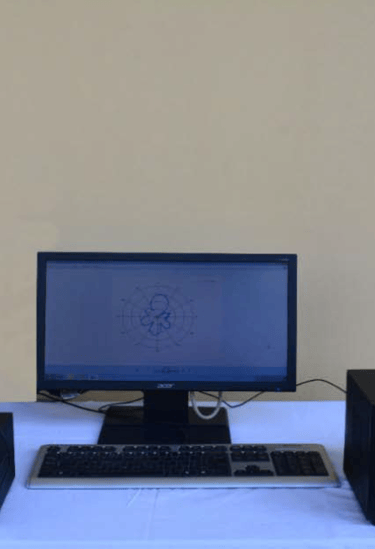

• Mubarak Software for plotting radiation patterns.

• Graphical User Interface for an Antenna Training and Measuring System.

Power pattern, Radiation intensity, Directivity and Gain.

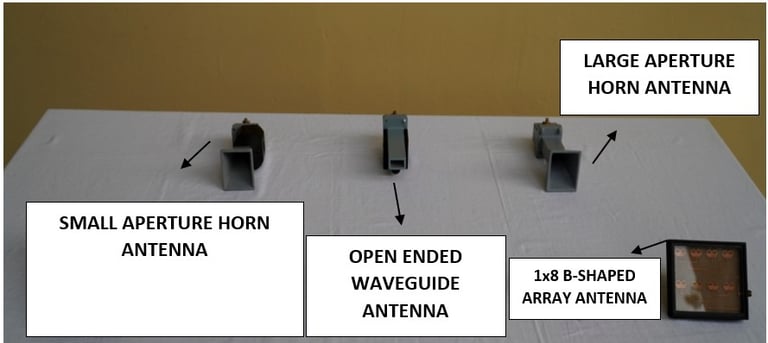

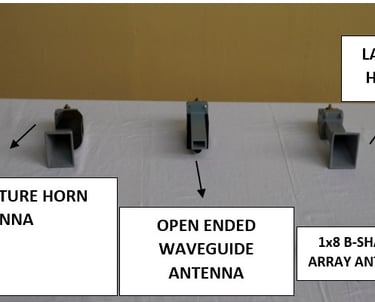

• Operates on 3 Frequencies (1 GHz, 3 GHz and 10 GHz)

• HPBW (Half Power Beamwidth), FNBR (First Null Beamwidth), FBR (Front to Back Ratio).

Mubarak M 5000-03

Frequency of Operation at 1GHz & 3 GHz:

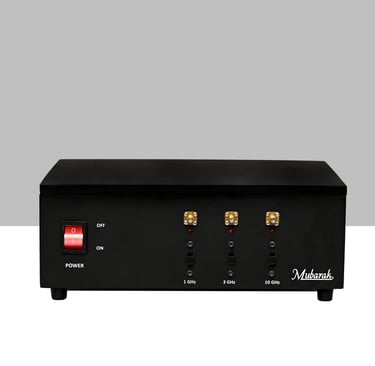

RF Generator (VCO)

• Supply Voltage: 5.0 V

• Current Supply: 40.0 mA

• Tuning Voltage: 0.1 - 4.9 V

• Output Power: 6.0 dBm

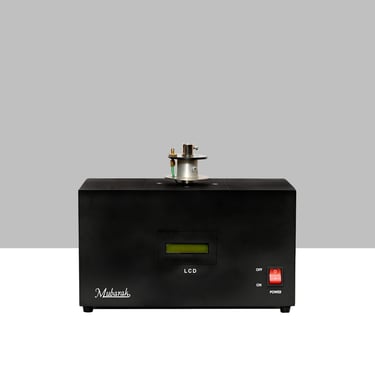

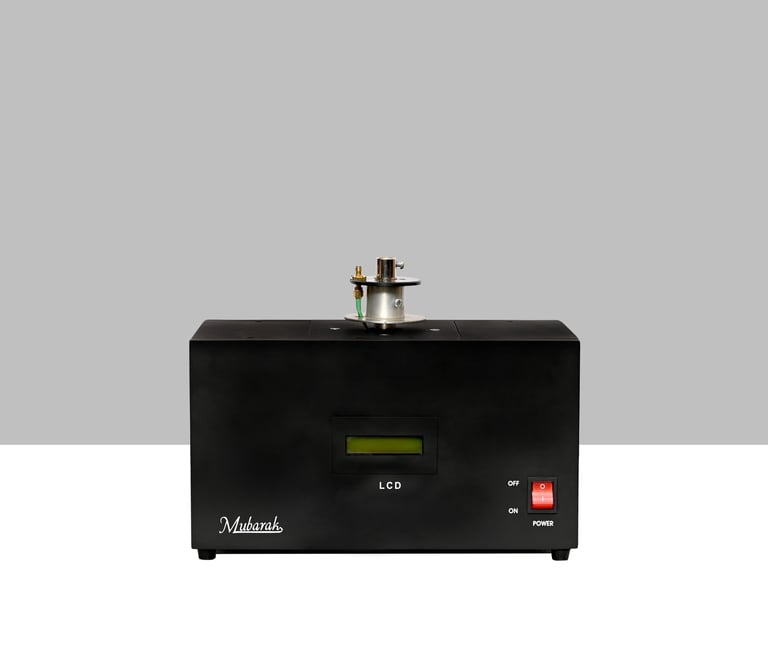

Receiver: RF Power Detector LTC 5582

• Frequency: 40 MHz - 6 GHz

• Supply Current: 41.6 mA

• Supply Voltage: 3.1 - 3.5 V

• Output DC Voltage: 0.69 V

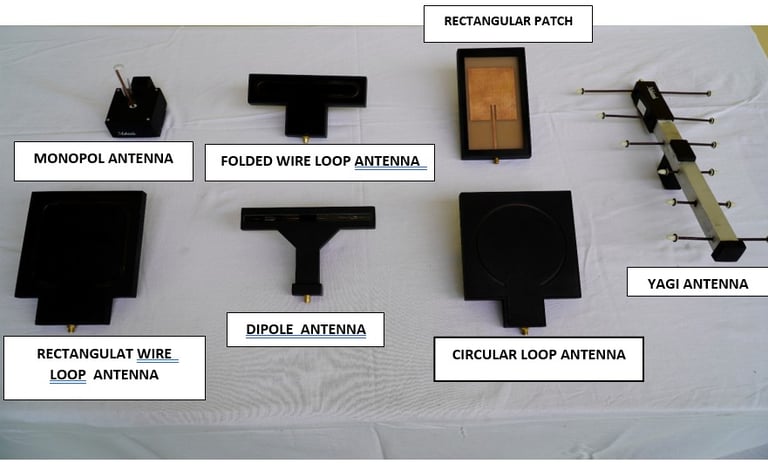

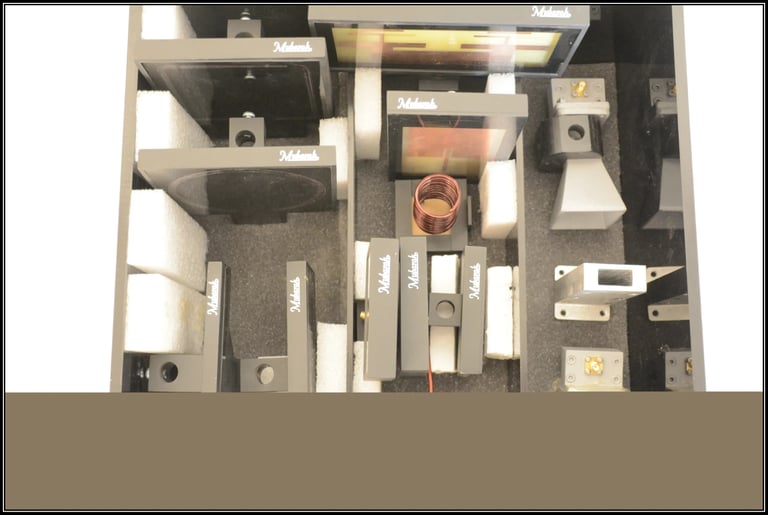

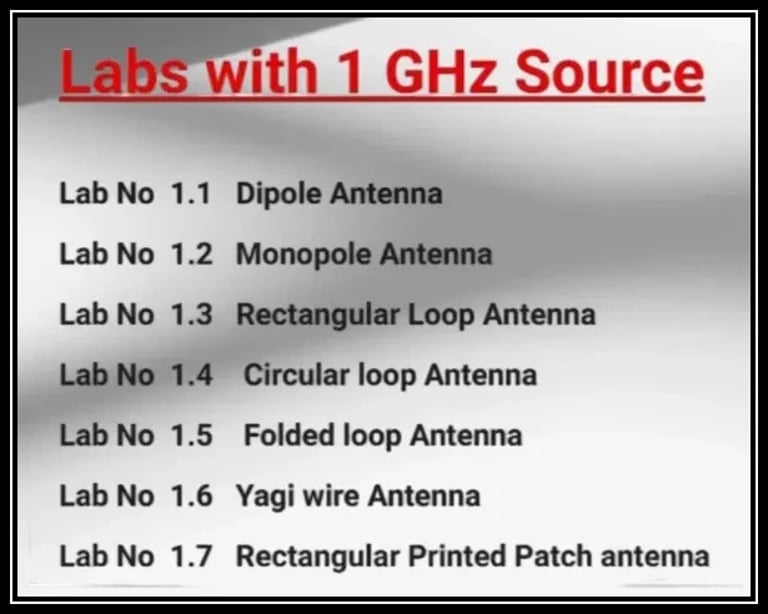

• Wire Antennas: Monopole Antenna, Dipole Antenna, Rectangular Loop Antenna, Circular Loop Antenna, Folded Loop Antenna, Yagi Antenna and Microstrip Patch Antenna.

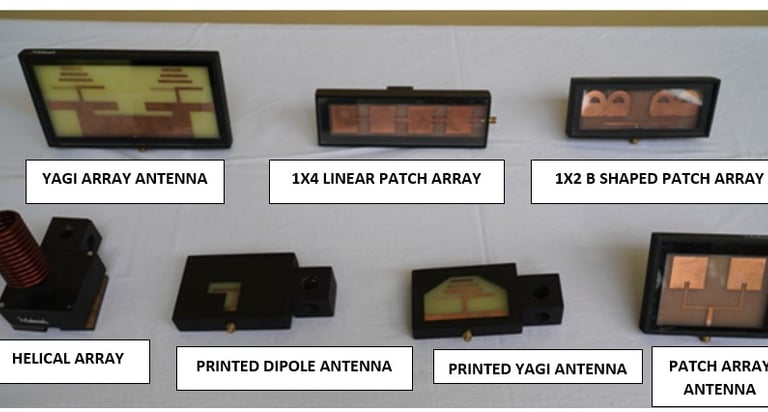

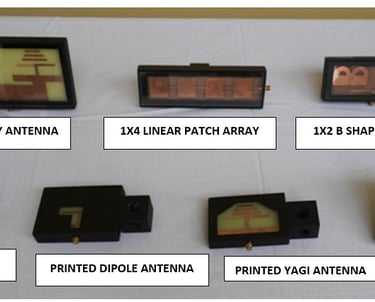

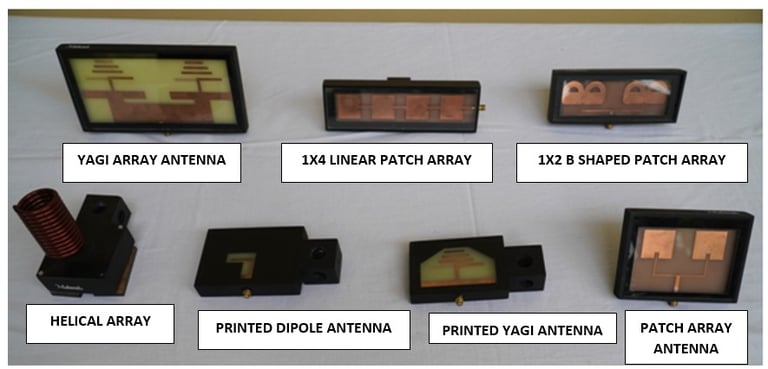

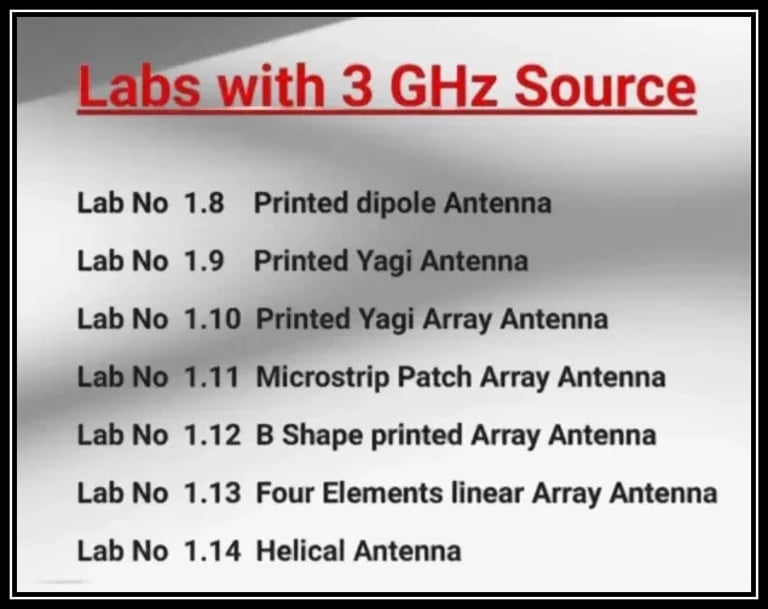

• Printed Antennas at 3GHz: Printed Dipole Antenna, Printed 1x2 Patch Array Antenna, Printed Yagi Antenna, Printed Yagi Array Antenna, Printed B shape Array, Helical Antenna, 1x4 Linear Array,

• Phased Array Antenna.  *Phased array antenna will be developed at 1 GHz and 3 GHz.
